Fathom - Premium In Ear Monitor
Fathom by Campfire Audio is an earphone made for audiophiles. Six custom-made balanced armatures deliver a detailed presentation with just the right touch of mid-band warmth that elevates vocal performance and offers a glowing musical experience.

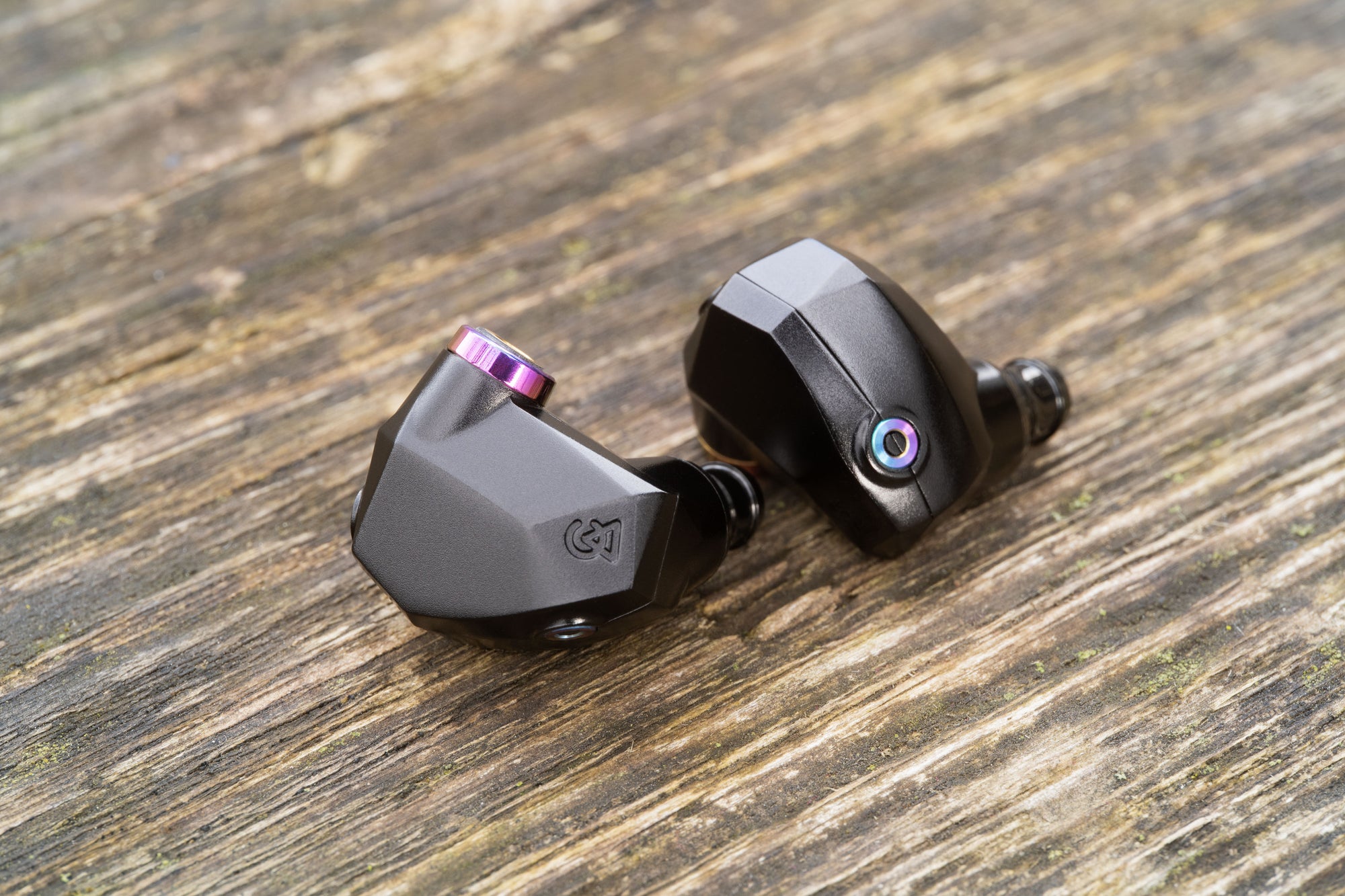

Fathom is encased in a machined aluminum body anodized in a sleek, black, bright-dip. The Rainbow PVD fasteners cast a vibrant spectrum of light against the deep black of the anodized shell, creating a striking contrast that is both visually captivating and elegantly understated.
Fathom is meticulously designed and assembled in Portland, Oregon, USA.
Pickup available at 2400 SE Ankeny
Usually ready in 24 hours
Fathom - Premium In Ear Monitor
-
2400 SE Ankeny
Pickup available, usually ready in 24 hours
2400 Southeast Ankeny Street
Portland OR 97214
United States+19712794357
Impedance- 11.7Ω @ 1kHz
Frequency Response- 5-20 kHz
SPL: 94db @ 1 kHz- 6.75 mVrms
THD less than 1%
- Fathom - Premium high-fidelity in-ear-monitors
- Time Stream Cables - Four SPC conductorsm 3.5mm single ended + 4.4mm balanced
- Dimensional Folding Wallet - Handmade in Portugal, genuine leather (black)
- Foam Eartips (S, M, L)
- Silicone Eartips (S, M, L)
- IEM Cleaning Tool
- Microfiber cleaning cloth
- CA Lapel pin
All of our wired earphones come with the protection of a 2-year manufacturer's warranty.
Questions? Contact us at support@campfireaudio.com - we're happy to assist in finding the perfect earphone for you.
a new level of performance
Fathom
refined precision and sonic impact
Fathom features a unique, six balanced armature configuration that evolved from the iconic Andromeda sound signature. It expands technical performance, increasing spatial imaging and soundstage, while reaching deeper lows and adding a beautiful mid-range emphasis that highlights vocal performance.
Interior
Two premium balanced armatures drive Fathom's bass response, tuned to deliver speed and accuracy, with a tasteful boost that delivers tactile punch and reaches deep to provide a satisfying foundation to Fathom's sound signature.
Fathom's mid-frequency drivers provide a sweet, rich, and detailed performance that brings mids/vocals slightly forward, highlighting the emotive and engaging content of lyrics, solos, and more.
Spacious clarity, breath, and air are brought into Fathom's sound signature via two powerful high-frequency drivers. With lightning fast response and accuracy these drivers impart sparkle and detail to upper registers.
Patented Campfire technology - TAEC features precision acoustic geometires and air volumes to expand driver performance and increase soundstage, detail, imaging, layering, and resolution.
Fathom uses Campfire's solid-body driver housing style, custom damping values, and carefully shaped acoustic chambers to shape driver performance and delicately boost/reduce frequency bands to achieve Fathom's target signature.
Fahtom features Campfire's highly-regarded, custom matrix MMCX connectors. Reliably connect and disconnect cables, worry free for years to come.
designed, engineered, and assembled by hand in portland, or.
Fathom is designed and engineered from top-to-bottom by Campfire's three person engineering team from our sole location in the heart of Portland, Oregon. Each set of Fathom is assembled by hand by our skilled production team, tested, packed, and shipped from the very same location.
Exterior
Durable and striking, Andromeda 10's precision machined stainless steel housing balanced premium, robust look and feel with high-level ergonimics and comfort.
Made to perform when it matters most, we offer quality that you can count on. Tested and proven to deliver consistent results, it's made for everyday use and beyond.
Custom Gold PVD CA inlay and fastener rings contrast against sleek black housing.
Fathom's aluminum nozzle is resilient to impacts and repeated eartip changes. Increasing longevity in comparison to typical, plastic nozzle earphones.
Frequency response
The below chart represents Fathom's relative volume levels across the frequency spectrum. Frequency response graphs are a valuable tool for getting a general sense of the tuning of an IEM, but cannot represent technical aspects of performance, like detail, timbre, soundstage, resolution, etc.
