Relay DAC/AMP
Campfire's new premium, portable DAC/AMP provides incredible sonic performance in a lightweight, durable, and convenient style.
- AKM SEQ 4493 DAC chip
- Two ultra-low-noise, high-output drivers
- High/Low gain modes
- Six selectable filter modes
- Media playback controls
- 60-step built-in volume controls
- 3.5mm single ended & 4.4mm balanced outputs
- DSD and PCM playback
Pickup currently unavailable at 2400 SE Ankeny
Relay DAC/AMP
-
2400 SE Ankeny
2400 Southeast Ankeny Street
Portland OR 97214
United States+19712794357
- Relay DAC/AMP premium portable hifi solution
- USB-C to USB-C Cable
- RipStop Cushioned Accessory Bag
- Microfiber Cleaning Cloth
USB 2.0 Type-C
Low Gain -
- 1.35 Vrms (Single-ended)
- 2.7 Vrms (Balanced)
High Gain -
- 2 Vrms (Single-ended)
- 4 Vrms (Balanced)
PCM and DSD Playback
Windows 7*/8*/10/11, Mac OS, Android, iOS
*Windows 7/8 require ASIO driver download here
16/24/32Bit, 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768kHz
Product Dimensions: Approx 57mm x 23mm x 10mm
All of our wired earphones come with the protection of a 2-year manufacturer's warranty.
Questions? Contact us at support@campfireaudio.com - we're happy to assist in finding the perfect earphone for you.
portable, powerful
relay dac/amp
elevate your portable hi-fi
Relay features a premium AKM 4493 SEQ DAC chip - the result of a meticulous selection process - chosen for its balanced, detailed performance and unique analog tonality. Easy to use, with a range of flexible, selectable parameters, Relay allows users to dial-in the perfect settings for their set-up, whether powering IEMs, or larger headphones.
technical performance
Selected after an exhaustive search of available DAC chips, the AKM 4493 SEQ was a clear choice. With an impressive range of features, compact size, and powerful sonic performance, this chip lays the foundation to make Relay your HiFi multitool.
Relay is capable of a wide range of bitrates up to 32 bit and 768 kHz. DSD and PCM playback supported.
Select the appropriate output level for your devices by easily toggling between high and low gain
Flexible and precise, Relay's 60-step volume control allows users to set the perfect listening level to maximize listening comfort and performance.
Six selectable filter modes give users the ability to fine tune the sound signature of their portable HiFi rig.
Relay is compatible with Windows, Mac OS, Android and iOS systems.
designed, engineered, and final assembly in Portland, oregon.

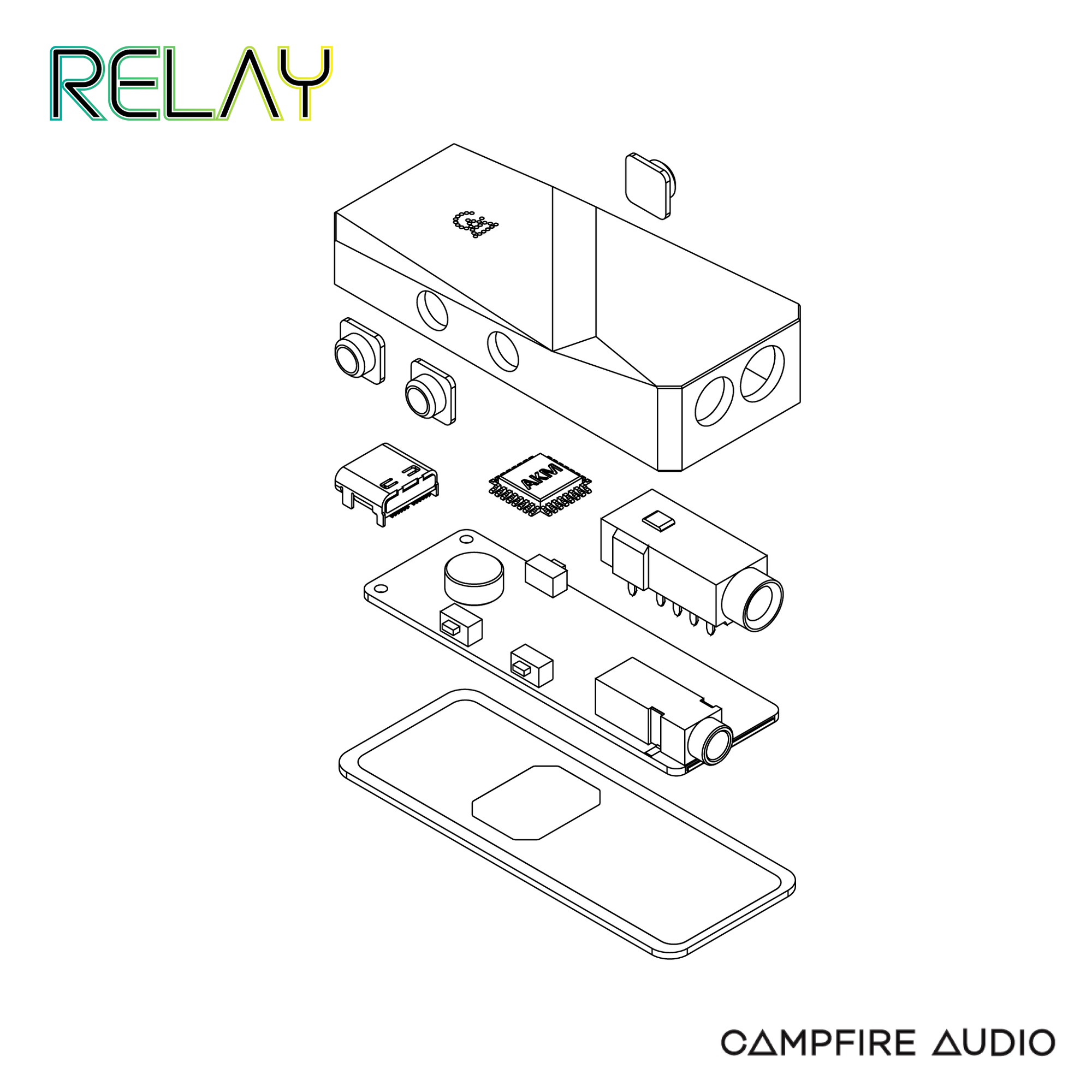

Relay's industrial design and engineering is the product of Campfire's small engineering team, parts are sourced globally, with final assembly taking place at our headquarters in Portland, Oregon. Each Relay DAC is assembled by the same skilled production team that hand-builds our premium IEMs.
Exterior
Relay's housing is striking and durable. Using Campfire's signature design language and premium materials, Relay has build-quality you can feel.
Relay's 'CA' logo light will signal gain mode changes, filter selection, and reflect current audio resolution.
Easily use Relay's built-in controls to select hi/lo gain, six filter modes, pause/play, and skip/previous song.
Versatile connectivity for your IEMs & headphones - utilize a standard 3.5mm single-ended connection or 4.4mm balanced signal.

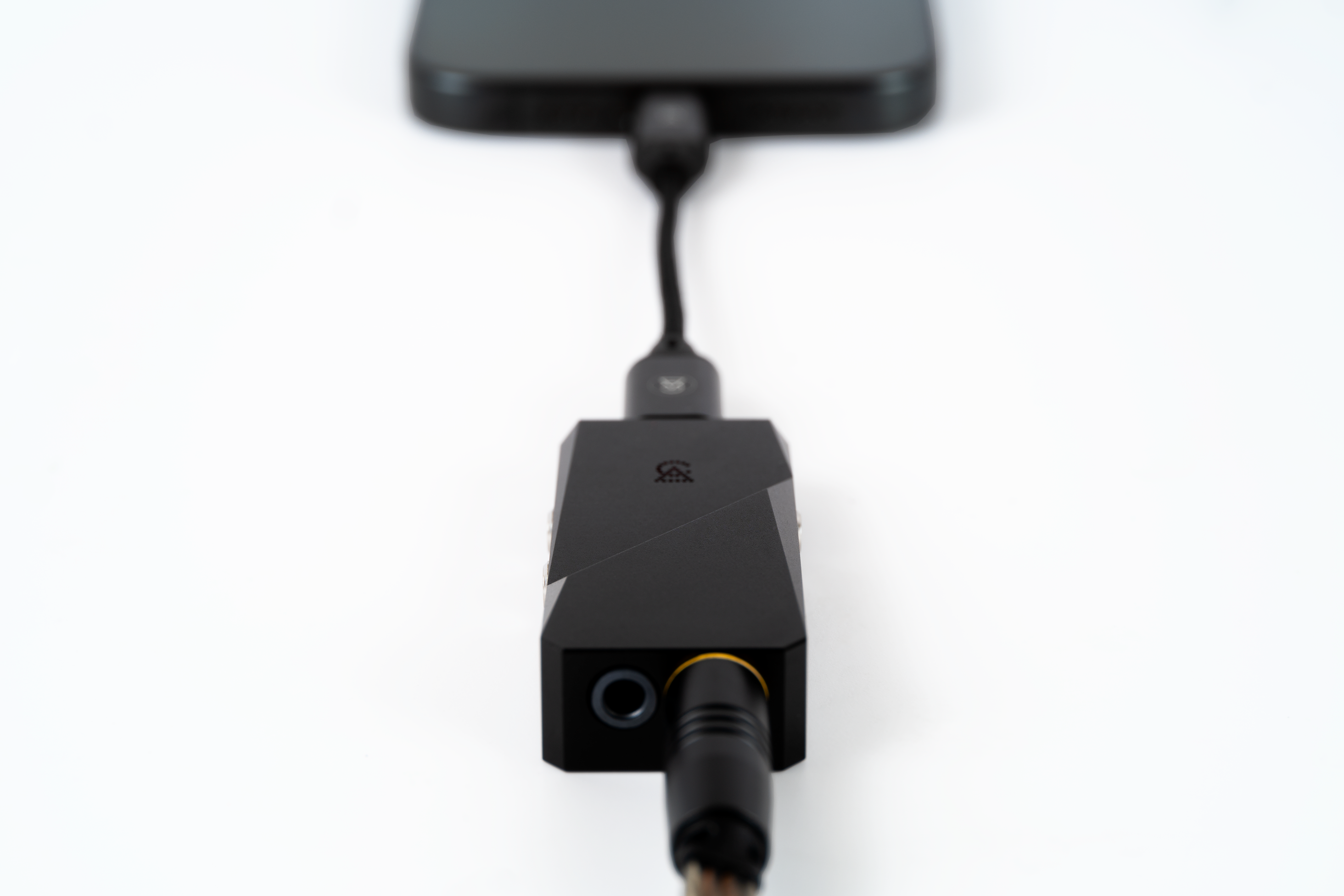

Relay included a USB-C to C cable to connect with a range of devices.
